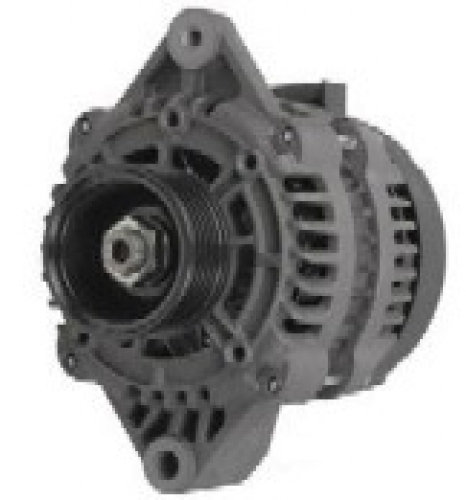

Alternator Marine Applications 95 Amps 12 Volt 8600002

Description

This is a Brand New Alternator Marine Applications 95 Amps 12 Volt 8600002

Models:

Indmar Marine Applications and Other Marine Applications

Replaces:

ARCO MARINE
20827

DELCO
8600002

OEM(s):Delco
Alternator Family:Delco 11SI
Voltage:12 Volts
Amps:95 Amps
Regulator Position:12:30
Polarity:Negative
Output Stud Dimensions:M8-1.25
Reg. Location:Internal
Fan Location:Internal
Approximate Weight:13 lbs / 4.77 kg

Notes:
6-Groove 62mm Pulley,
2″ Mounting Foot,
M8-1.25 Threaded Adjusting Ear, 4 Terminal Plug

Product Specifications

The alternator is manufactured according to high-quality standards and includes the following specifications:

• Product Type: Brand New Marine Alternator
• OEM Family: Delco 11SI
• Voltage: 12 Volts
• Output: 95 Amps
• Internal Voltage Regulator
• Internal Cooling Fan
• Negative Polarity
• Regulator Position: 12:30
• Output Stud Dimensions: M8-1.25
• Approximate Weight: 13 lbs (4.77 kg)
• 6-Groove 62mm Pulley
• 2-inch Mounting Foot
• M8-1.25 Threaded Adjusting Ear
• 4-Terminal Plug

These specifications provide dependable charging capacity while allowing straightforward installation in compatible marine applications.

Installation Tips

For the best results during installation:

• Disconnect the battery before beginning work.
• Compare the new alternator with the original unit.
• Verify pulley alignment.
• Inspect wiring for corrosion or damage.
• Tighten all mounting hardware to specification.
• Check belt condition and proper tension.
• Test charging voltage after installation.

Proper installation helps maximize alternator efficiency and service life.
