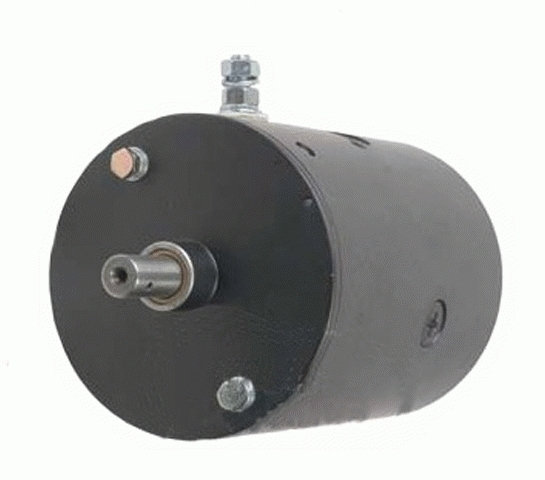

Winch Motor Fits Bellview Warn Winch Heavy Duty 4 Field Motor 46 3650 MHT6101

Description

This is a Brand New Aftermarket Winch Motor Fits Bellview Warn Winch Heavy Duty 4 Field Motor 46 3650 MHT6101
Models:
Bellview, Warn Winch (Early)
OE Came as 2-Coil Field Unit
Replacement is Heavy Duty 4-Coil Field Motor
1 Post
CCW
14-Tooth Gear On Shaft
Thru Bolts at 5:00 & 11:00
Motor has Steel C.E. Plate w/Center Hole for the Shaft.
Must be Used w/Original C.E. Brake Assembly if Needed.
Replaces:
Prestolite
46-3650, MHT6101,
MHT7001, MHT7101, MHT7101S
Western Motor
W-8703
Also Replaces:
160-801, MHT-6101, MHT-7001, MHT-7101, MHT-7101S
OEM(s):Prestolite
Voltage:12
Rotation:CCW
Field Hsg OD:114.3mm / 4.500in
Overall Length:243mm / 9.567in
Shaft OD:14.4mm / 0.567in
Terminal 1 Size:5/16-24
Approximate Weight:17.2 lbs / 7.82 kg
Notes:
Thru Bolts at 5:00 & 11:00,
14-Tooth Gear,
Roll Pin Hole in CE Shaft

The Heavy Duty 4-Field Winch Motor (Part Numbers: 46-3650, MHT6101) is a premium aftermarket replacement designed specifically for early Bellview and Warn winch models. This powerful 12V DC electric motor upgrades the original equipment (OE) 2-coil field design to a more robust 4-coil field configuration, delivering enhanced torque, improved durability, and better performance under demanding off-road, recovery, and towing conditions.

Why Choose This Heavy-Duty 4-Field Upgrade?

The original 2-coil motors in many early Bellview and Warn winches can struggle with modern demands—frequent stalls, excessive heat buildup, or premature failure during heavy pulls. Switching to this heavy-duty 4-field motor addresses those issues head-on:

• Enhanced Torque and Power — The additional field coils generate stronger magnetic fields for better low-speed torque and consistent performance.
• Improved Heat Dissipation — Runs cooler during prolonged operation, reducing the risk of burnout.
• Greater Durability — Built with robust components like a steel C.E. plate and heavy-duty windings to withstand vibration, dirt, and moisture.
• Cost-Effective Reliability — Avoid expensive winch replacements by refreshing your existing setup with a high-quality aftermarket motor at a fraction of the cost.
• Brand-New Condition — No core charge, no rebuild uncertainties—just fresh, ready-to-install performance.

Off-road enthusiasts and professional users praise these 4-coil motors for transforming sluggish older winches into dependable powerhouses capable of handling tough recoveries without hesitation.
