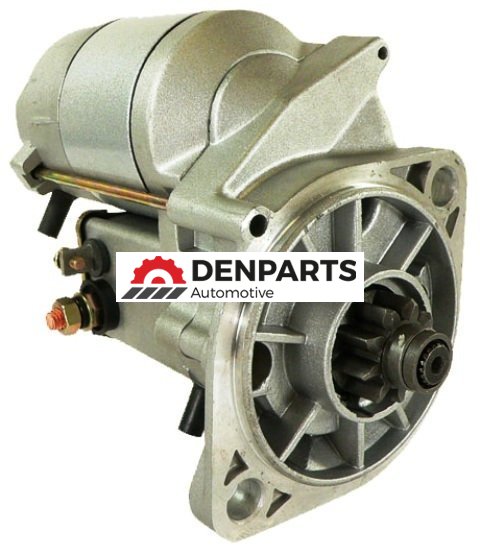

Starter Fits Isuzu 3AB1 Engine Komatsu Lift Trucks and TCM Lift Trucks 1 4KW

Description

This is a Brand New Aftermarket Starter Fits Isuzu 3AB1 Engine Komatsu Lift Trucks and TCM Lift Trucks 1 4KW

Models:

ISUZU Ag & Industrial

Industrial Equipment
1985 3AB1 Engine

KOMATSU Ag & Industrial

Lift Trucks

1984 FD10 4FE1 Engine
1984 FD14 4FE1 Engine
1984 FD15 4FE1 Engine
1984 FD18 4FE1 Engine
1988 FD20L-10 4FE1 Engine
1988 FD25L-10 4FE1 Engine
1984 FD9 4FE1 Engine

TCM EQUIPMENT Ag & Industrial

Lift Trucks

1984 FD10Z 4FE1 Engine
1984 FD14Z 4FE1 Engine
1984 FD15Z 4FE1 Engine
1984 FD18Z 4FE1 Engine
1984 FD20Z 4FE1 Engine
1984 FD23Z 4FE1 Engine
1984 FD25Z 4FE1 Engine
1984 FD9Z 4FE1 Engine

Replaces:

DENSO FIRST TIME FIT
280-7066

ISUZU
8941702050, 8941702051

LUCAS ELECTRICAL EUROPE
LRS01299

NIPPONDENSO
128000-1100,
128000-1101, 128000-1102

OEM(s): Denso, Isuzu, Komatsu
Starter Family: Denso IIR
Type: OSGR
Voltage: 12 Volts
kW: 1.4 kW
Rotation: CW
Teeth/Splines: 9 Teeth/Splines
Pinion/Splines OD: OD:31.9mm / 1.256in
Mounting Hole: 13.5 mm ID, unthreaded
Mounting Hole 2: 13.5mm ID Unthreaded
Approximate Weight: 8.35 lbs / 3.80 kg

Notes: Battery & Motor Studs M8-1.25 threaded.

Why Choose This Aftermarket Starter for Your Isuzu 3AB1, Komatsu, or TCM Lift Truck?

1. Reliable Performance: Built with quality components to provide consistent, strong cranking torque. The 1.4kW output ensures quick starts for the Isuzu 3AB1 diesel engine, reducing wear on the battery and flywheel.
2. Cost-Effective Solution: As a brand-new aftermarket unit, it offers OEM-level quality at a fraction of the dealer price—ideal for fleet operators, repair shops, and independent owners looking to save without sacrificing durability.
3. Direct Fit Installation: No modifications required. The mounting holes, pinion gear, and electrical connections align perfectly with your existing setup for a straightforward bolt-on replacement.
4. Durable Construction: Features robust gearing, heavy-duty solenoids, and corrosion-resistant finishes to withstand the harsh environments typical in forklift and industrial applications.
5. Reduced Downtime: A failed starter can halt operations instantly. Replace it proactively with this dependable unit to keep your Komatsu forklift, TCM lift truck, or Isuzu-powered industrial machine running smoothly.
