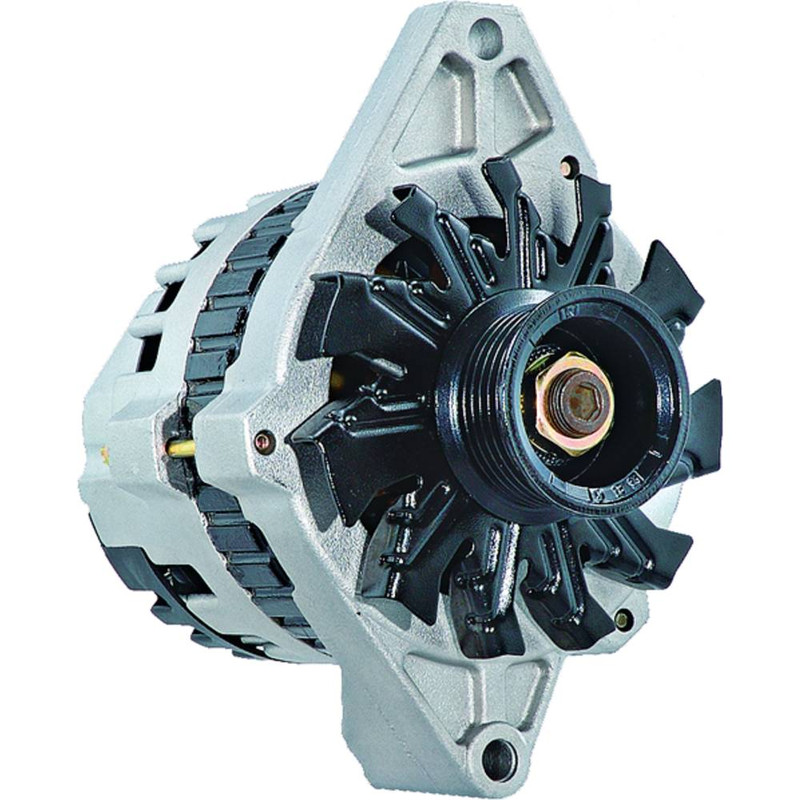

Buick Oldsmobile Pontiac ALTERNATOR

Buick Oldsmobile Pontiac ALTERNATOR

7964-11|8103-11
Specifications
MFR:DELCO
Mfr Series:CS130
AMPERAGE:105
DESIGN:IR/EF
FEATURE 1:100% New
FEATURE 2:OE performance output curve
FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
FEATURE 5:Premium, hi-temperature WBD bearings
FEATURE 6:Hi-temperature class-H windings
FEATURE 7:Precision CNC machined castings
NOTE 1:310 Plug Code
NOTE 2:Neg. Grd.
PLUG CLOCK:11:00 Plug Clock
PULLEY CLASS:S6
PULLEY NOTE:56mm OD
ROTATION:CW
SPECS FOR:Delco CS130 Series IR/EF
SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 11:00 Plug Clock
VOLTAGE:12
Part Type
Alternator
Design
IR/EF
Rotation
CW
Voltage
12
Amperage
105
Pulley Class
S6
Replaces
Delco 10463150, 10463167, 10463182, 10463345, 10463525, 10479901, 10480027, 10480040, 10480127, 1101577, 1101649, 1101650, 1102604, GM 10463150, 10463167, 10463182, 10463345, 10463525
USED ON
Buick (1990-1995) ** Oldsmobile (1991-1991) ** Pontiac (1991-1991)
MFR
DELCO
Mfr Series
CS130
LESTER NUMBERS
7964-11, 8103-11
