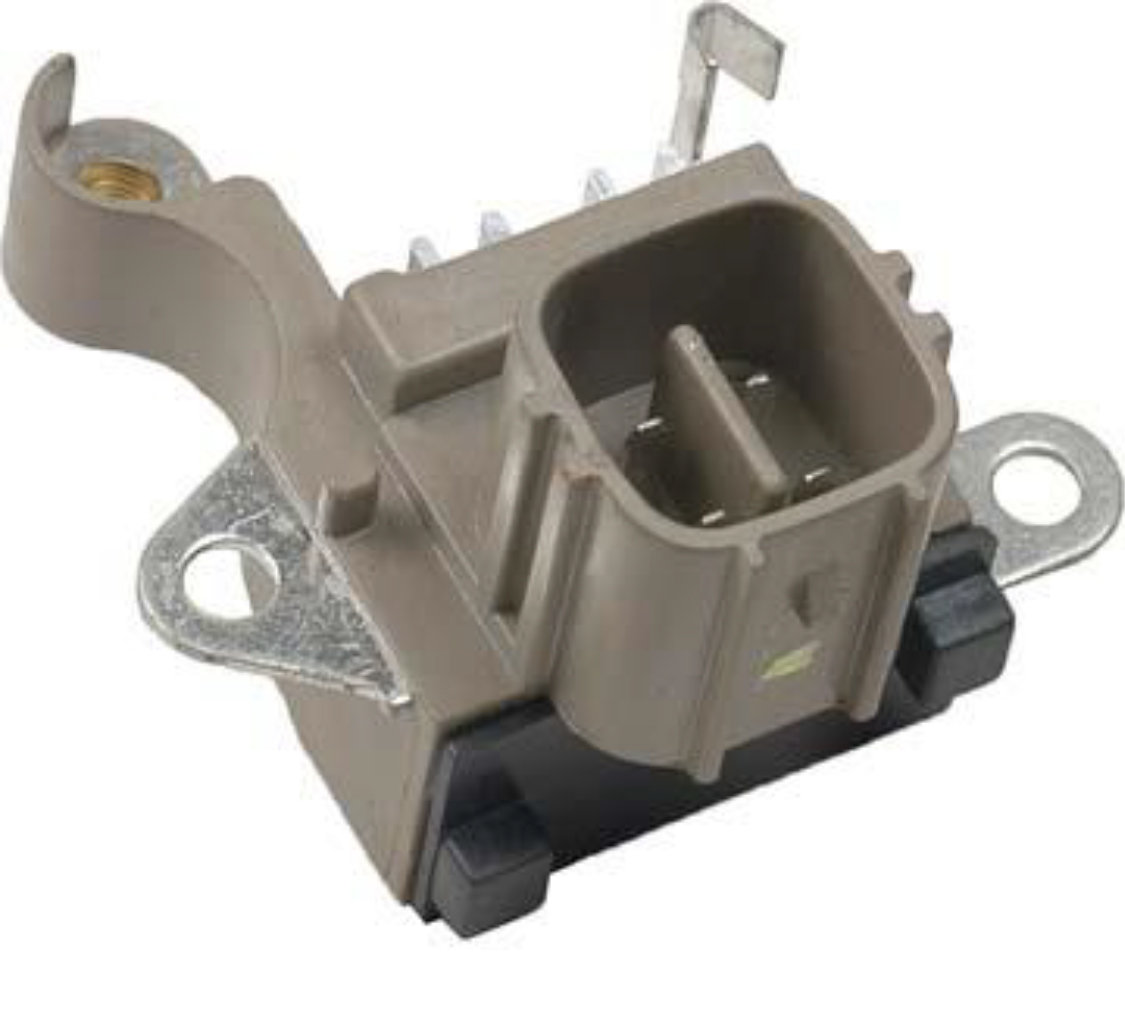

Alternator Regulator Saturn Vue 3.5L 2004 2005 2006 2007 104210-3770

Description

Applications:

Saturn Truck Vue V6 3.5L 3471cc 2006
Saturn Truck Vue V6 3.5L 3471cc 2007

Saturn Truck Vue V6 3.5L 3474cc 2004
Saturn Truck Vue V6 3.5L 3474cc 2005

Saturn Truck Vue V6 3.5L 3475cc 2004

Specifications:

Description: Regulator, Electronic
OEM(s): Denso, Saturn
Voltage: 12
Set Point: 14.4
Terminal ID: NC, NC, L, FR
Polarity: Negative
Includes Brush Holder?: No
Activation: Ignition
Adjustable?: No
Circuit Type: B-Circuit
Includes Rectifier?: No
Includes Tolerance Ring?: No

NOTE:

-NC = no connection
-Standard lamp function – no output
-Lamp activated
-Soft start & LRC
-Short-circuit protection: lamp, field

Replaces these part numbers:

Denso: 126600-3080

OEM UNIT NUMBERS:

Denso: 104210-3770

GM: 12582024

Honda: 31100-RDM-A01, 31100-RDM-A01RM, CSC77
