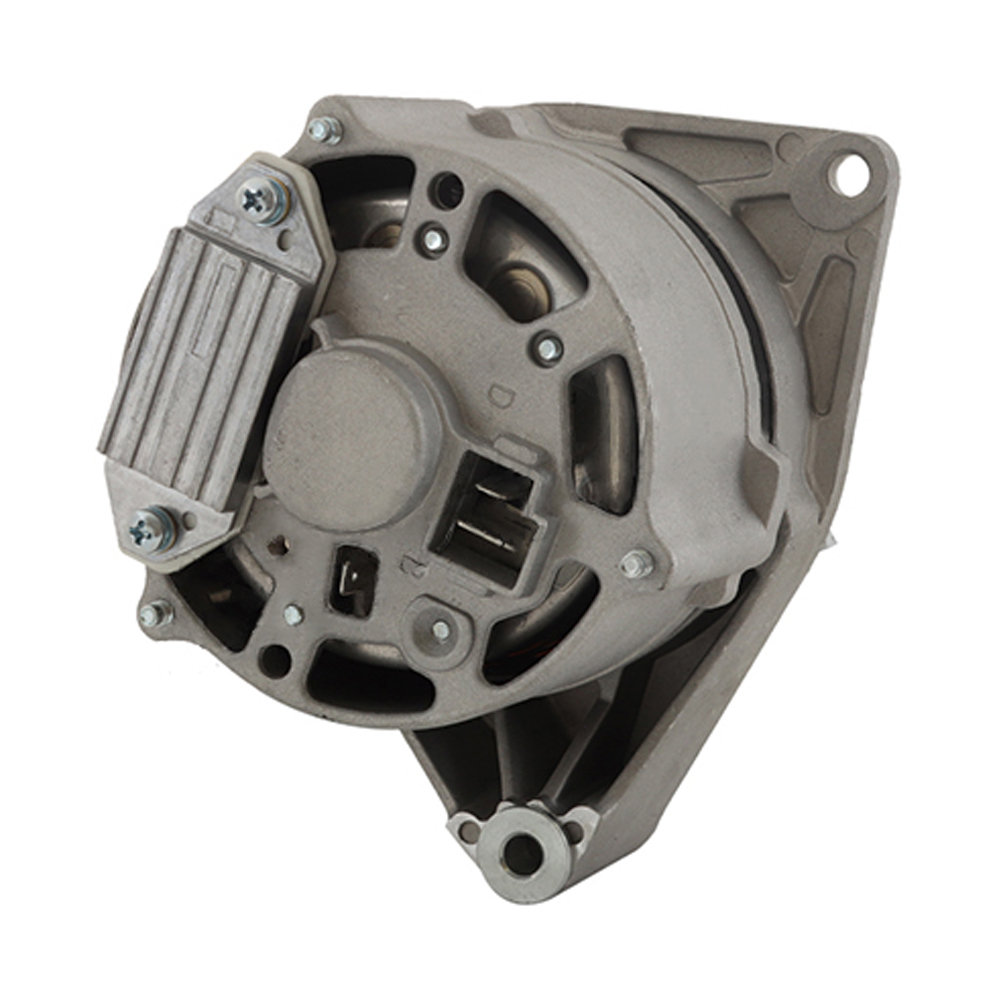

Alternator Fits Steyr 1200A 545 548 658 760 768 980 988 Tractors 30800090021

Description

Alternator Fits Steyr 1200A 545 548 658 760 768 980 988 Tractors 30800090021

Applications:

Marshall Tractors Agricultural Tractor

D110 Steyr-WD611.88, 5.2 1990
D135 Steyr-WD612.87, 6.6 1990
D642 Steyr-WD411.44, 3.5 1990
D644 Steyr-WD411.44, 3.5 1990
D742 Steyr-WD411.90, 3.5 1990
D744 Steyr-WD411.90, 3.5 1990
D842 Steyr-WD411.88, 3.5 1990
D844 Steyr-WD411.88, 3.5 1990
D944 Steyr-WD611.43, 5.2 1990

Steyr Agricultural Tractor

1200A WD610.41, 6.0 1972-1975
1200A WD610.43, 6.0 1972-1975
658 WD408.42, 3.1 1977-1979
760 WD408.43, 3.1 1978-1982
768 WD408.43, 3.1 1977-1979
8055 WD311.44, 2.6 1982-1986
8055A WD311.45, 2.6 1982-1986
8055A WD311.47, 2.6 1986
8060 WD311.41, 2.6 1980-1987
8060A WD311.40, 2.6 1980-1987
8065A WD311.85, 2.6 1986
8070 WD411.42, 3.5 1980-1984
8070A WD411.41, 3.5 1980-1984
8075A WD411.45, 3.5 1984
8075A WD411.46, 3.5 1984
8080 WD411.68, 3.5 1980-1985
8080 WD411.85, 3.5 1980-1985
8080 WD411.89, 3.5 1984
8080 WD411.90, 3.5 1984
8090A WD411.87, 3.5 1984
8090A WD411.88, 3.5 1984
8100 WD611.40, 5.2 1978-1988
8110 WD611.42, 5.2 1984
8110 WD611.43, 5.2 1984
8120 WD611.85, 5.2 1978-1984
8120 WD611.86, 5.2 1978-1984
8130 WD611.87, 5.2 1984
8130 WD611.88, 5.2 1984
8140 WD612.40, 6.6 1977-1982
8150 WD612.87, 6.6 1982
8160 WD612.85, 6.3 1974-1981
8170 WD612.89, 6.6 1981-1988
980 WD412.40, 4.4 1976-1977
988 WD412.41, 4.4 1977-1979

Steyr Tractor

545 WD308.45, 2.4 1978-1982
548 WD308.45, 2.4 1977-1979

Specifications:

Description: Alternator
OEM(s): Letrika/MAHLE
Voltage: 12
Amps: 33
Rotation: CW
Mount Type: Spool
Mtg Ear 1 Hole: 8.3mm Unthreaded
Mtg Ear 2 Hole: 8.3mm Unthreaded
Mtg Ear 1 Thickness: 0.394in / 10mm
Mtg Ear 2 Thickness: 2.205in / 56mm
Regulator Clock: 11:00
Fan Location: External
Regulator Location: Internal
B+ Terminal: Large Spade
D+ Terminal: Spade
Polarity: Negative
Pulley Grooves: 1
Pulley Type: Solid
Pulley OD: 2.677in / 68mm
Weight: 9 lbs / 4.09 kg

Replaces these part numbers:

Bosch: 0120339526, 0986033070, 0-120-339-526
Hella: 8EL 725 885-001
Letrika/MAHLE: 11.201.062, AAG1307, IA0062, MG371
Magneti Marelli: MAR846
Steyr: 30800090021
