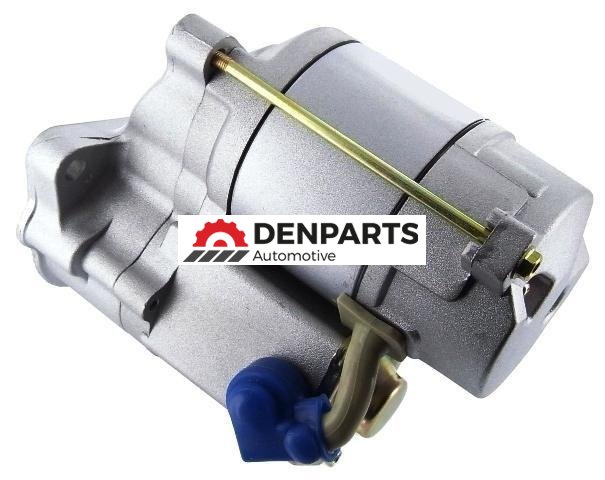

Starter Kubota Tractors 16235-63010, 16235-63011

Description

Starter Kubota Tractors 16235-63010, 16235-63011

Applications:

Kubota Excavator

KX41-2 Kubota D1105-BH-7 Dsl 1997-2006
KX41-2 Kubota D1105BH 21.6HP Dsl 1995-2006
KX41-2S Kubota D1105BH 21.6HP Dsl 2000-2011
KX41-2SV Kubota D1105BH 21.6HP Dsl 2000-2011

KX61-2 Kubota D1105-EBH-6 Dsl 1997-2006
KX61-2 Kubota D1105BH 27HP Dsl 1995-2006
KX61-2S Kubota D1105BH 27HP Dsl 1995-2006

KX91-2 Kubota V1505BH 27.5HP Dsl 1995-2006
KX91-2S Kubota V1505EBH 27.5HP Dsl 2000-2011

Kubota Tractor – Sub Compact

BX22 Kubota D905E-BX 22HP Dsl 2002-2003

BX2200D Kubota D905E-BX 22HP Dsl 2001-2003

Kubota Utility Vehicle

RTV1100 898cc 2007
RTV1100 898cc 2010-2011

RTV1100 898cc Kubota D1105-E2-UV 24.8HP Dsl 2008-2009
RTV1100 898cc Kubota D1105-E2-UV 24.8HP Dsl 2012

RTV900 898cc 2004-2007
RTV900 898cc 2010-2011

RTV900 898cc Kubota D902E-UV 21.6HP Dsl 2008-2009

Specifications:

Description: Starter
OEM(s): Denso
Voltage: 12
Power: 1.4kW / 1.88HP
Rotation: CW
Starter Type: OSGR
Number of Teeth: 9
Gear OD: 1.134in / 28.8mm
Mtg Ear 1 Hole: 8.9mm Unthreaded
Mtg Ear 2 Hole: 8.9mm Unthreaded
Weight: 8.8 lbs / 4 kg

Replaces these part numbers:

Kubota
16235-63010,
16235-63011, 16235-63012,
K7561-61810, K7561-61811

Nippondenso
228000-6320,
228000-6321, 428000-2640
