Starter for Suzuki GSX-R750 T V W X 1996-1999

Description

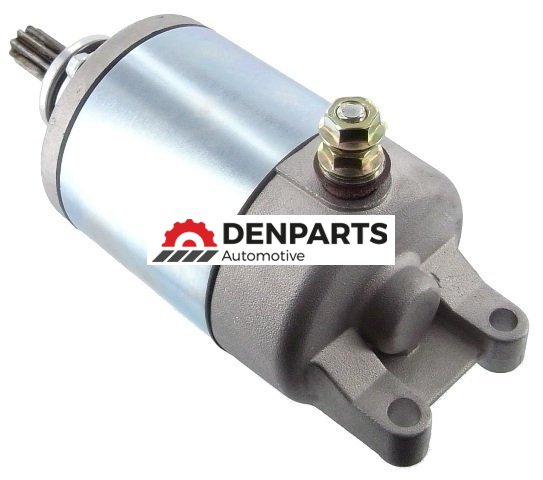

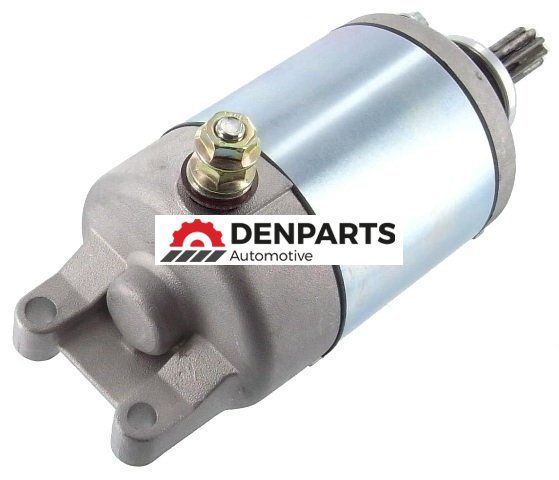

This is a Brand New Starter for Suzuki GSX-R750 T V W X 1996-1999

Models:

SUZUKI Powersport

2001 MOTORCYCLE GSX-R600 (K1) 599cc

2002 MOTORCYCLE GSX-R600 (K2-K5) 599cc
2003 MOTORCYCLE GSX-R600 (K2-K5) 599cc
2004 MOTORCYCLE GSX-R600 (K2-K5) 599cc
2005 MOTORCYCLE GSX-R600 (K2-K5) 599cc

2001 MOTORCYCLE GSX-R750 (K1,K2) 750cc

2002 MOTORCYCLE GSX-R750 (K2-K5) 750cc
2003 MOTORCYCLE GSX-R750 (K2-K5) 750cc
2004 MOTORCYCLE GSX-R750 (K2-K5) 750cc
2005 MOTORCYCLE GSX-R750 (K2-K5) 750cc

2000 MOTORCYCLE GSX-R750 (Y) 750cc

1996 MOTORCYCLE GSX-R750 (T,V) 750cc
1997 MOTORCYCLE GSX-R750 (T,V) 750cc

1998 MOTORCYCLE GSX-R750 (W,X) 750cc
1999 MOTORCYCLE GSX-R750 (W,X) 750cc

Replaces:

MITSUBA
SM14202

SUZUKI
31100-33E00, 31100-35F00

OEM(s):Mitsuba
Starter Family:Mitsuba SM14
Type:PMDD
Voltage:12 Volts
Rotation:CCW
Teeth/Splines:9 Teeth/Splines
Pinion/Splines OD:11.7mm / 0.461in
Mounting Hole 1:6.4mm IDUnthreaded
Mounting Hole 2:7.4mm IDUnthreaded
Approximate Weight:2.42 lbs / 1.10 kg

Notes:
12.5mm Thick Mounting Ears
