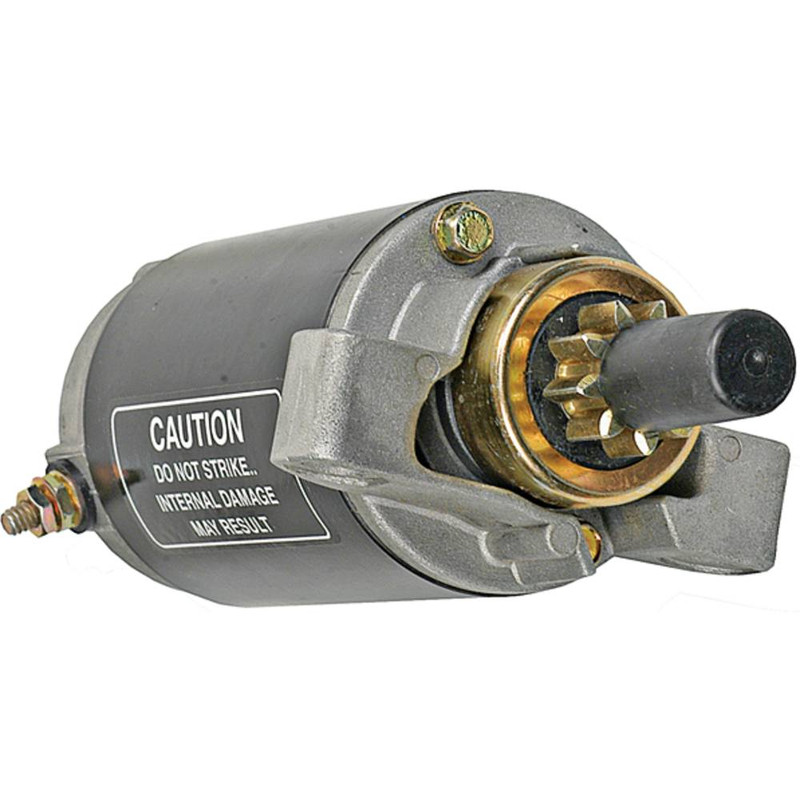

Mercury Outboard Starter 50HP 4-Stroke 50-834749

Description

This is a Brand New Mercury Outboard Starter 50HP 4-Stroke 50-834749

Models:

MARINER Marine

ENGINES – MARINE OUTBOARD 50EL 4-Stroke 57.0ci – 50 H.P. 1998
ENGINES – MARINE OUTBOARD 50EL B/F 4-Stroke 57.0ci – 50 H.P. 1999-2000
ENGINES – MARINE OUTBOARD 50ELHPT 4-Stroke 57.0ci – 50 H.P. 1995-2000
ENGINES – MARINE OUTBOARD 50ELPT 4-Stroke 57.0ci – 50 H.P. 1995-2000
ENGINES – MARINE OUTBOARD 50ELPT B/F 4-Stroke 57.0ci – 50 H.P. 1998-2000

MERCURY Marine

ENGINES – MARINE OUTBOARD 50EL 4-Stroke 57.0ci – 50 H.P. 1998 ENGINES – MARINE OUTBOARD 50EL B/F 4-Stroke 57.0ci – 50 H.P. 1999-
2000
ENGINES – MARINE OUTBOARD 50ELHPT 4-Stroke 57.0ci – 50 H.P. 1996-2000
ENGINES – MARINE OUTBOARD 50ELPT 4-Stroke 57.0ci – 50 H.P. 1995-2000
ENGINES – MARINE OUTBOARD 50ELPT B/F 4-Stroke 57.0ci – 50 H.P. 1998-2000

Replaces:

API MARINE
MOT3018

ARCO MARINE
5362

JOHNSON ELECTRIC
10153540

MERCURY MARINE
50-834749, 50-859171T

UNITED TECHNOLOGIES
6743240-M030SM, SM67432

OEM(s):Mercury Marine, Johnson Electric
Type:PMDD
Voltage:12 Volts
Rotation:CCW
Teeth/Splines:9 Teeth/Splines
Pinion/Splines OD:28.5mm / 1.122in
Mounting Hole 1:8.6mm IDUnthreaded
Mounting Hole 2:8.6mm IDUnthreaded
Approximate Weight:6.045 lbs / 2.75 kg

Notes:
Mounting Holes are 25.5mm Long,
Stud Terminal Is on Side of CE Cap,
102.2mm Field Case Length
