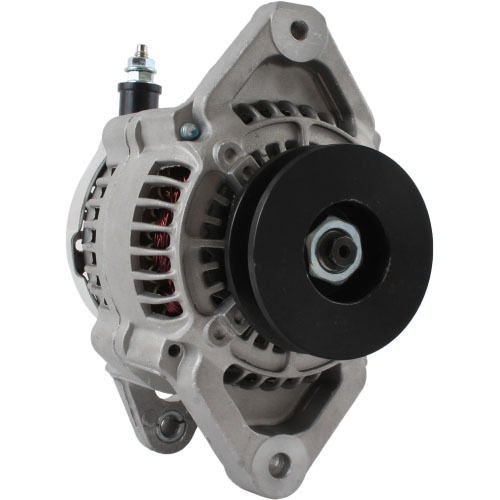

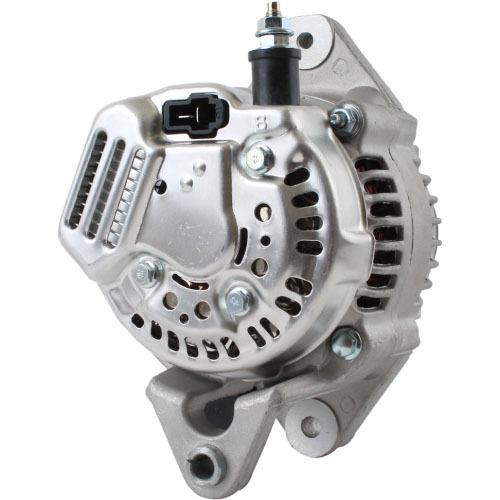

Alternator Toyota Lift Trucks 5FG-25 1986 1987 1988 4P / 4Y Engine

Description

Applications:

TOYOTA Lift Trucks 5FG-25 1986 4P Engine
TOYOTA Lift Trucks 5FG-25 1987 4P Engine
TOYOTA Lift Trucks 5FG-25 1988 4P Engine

TOYOTA Lift Trucks 5FG-25 1986 4Y Engine
TOYOTA Lift Trucks 5FG-25 1987 4Y Engine
TOYOTA Lift Trucks 5FG-25 1988 4Y Engine

Specifications:

Description: Alternator
OEM(s): Denso, Hyster, Toyota
Voltage: 12
Amps: 50
Mtg Ear 1 Hole: M8-1.25 Threaded
Mtg Ear 2 Hole: 8.5mm Unthreaded
Mtg Ear 3 Hole: 8.5mm Unthreaded
Regulator Clock: 12:00
Fan Location: Internal
Regulator Location: Internal
B+ Terminal: M6-1.0
Polarity: Negative
Pulley Grooves: 1
Pulley Type: Solid
Weight: 8.48 lbs / 3.85 kg

Replaces these part numbers:

DENSO: 100211-4210

HYSTER: 3049394

TOYOTA: 27070-23000-71, 27070-23000
