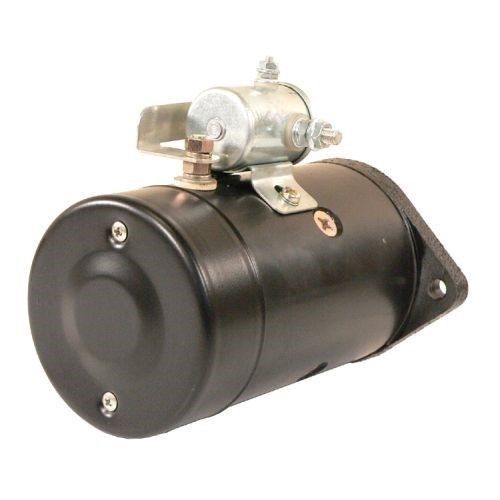

PUMP MOTOR REPLACES WESTERN W-6598 W-6599 HALE

Description

PUMP MOTOR REPLACES WESTERN W-6598 W-6599 HALE

Applications:

HALE FIRE PUMP
WISCONSIN ENGINEERING
POWER WHEELS EQUIPMENT
PUREX
WATEROUS
AMERICAN GODIVA

Specifications:

Unit Type: Pump Motor
Voltage: 12
Rotation: CW
Field Housing O.D.: 4.50 in.
Overall Length: 8.929 in.
Shaft Outside Diameter: 15.8 mm
Shaft Style: Keyway
Terminal 1 Size: 5/16 – 18
Housing Finish: Field case is black.
Weight: 19 lbs.

Notes: Double ball bearing. Comes with Solenoid and connecting strap. Also available with plastic “Prestolite” style solenoid.

Replaces these part numbers:

ARROWHEAD: LPL0028
HALE: 200-0040-00
LESTER: 10718, 5196, 6005
PRESTOLITE: 46-2155, 46-2244, 46-235, 46-2604, 46-4200, 46-555, 46-557, MAY4146, MAY4301, MAY4301S, MCL6225, MCL6225A, MCL6228, MCL6229, MCL6508, MCL6508T, MUE6207, MUE6216, MUE6307, MUE6316
REFERENCE NUMBER: M-2000, V-1157, V-2068, VHA-445D
WESTERN MOTORS: W-6216, W-6598, W-6599
